Copper Alloy Ball Valves
Threaded brass and bronze ball valves for water, air conditioning and general utility service, including a WRAS-approved bronze model and an electric-actuated version.
Copper Alloy Ball Valves

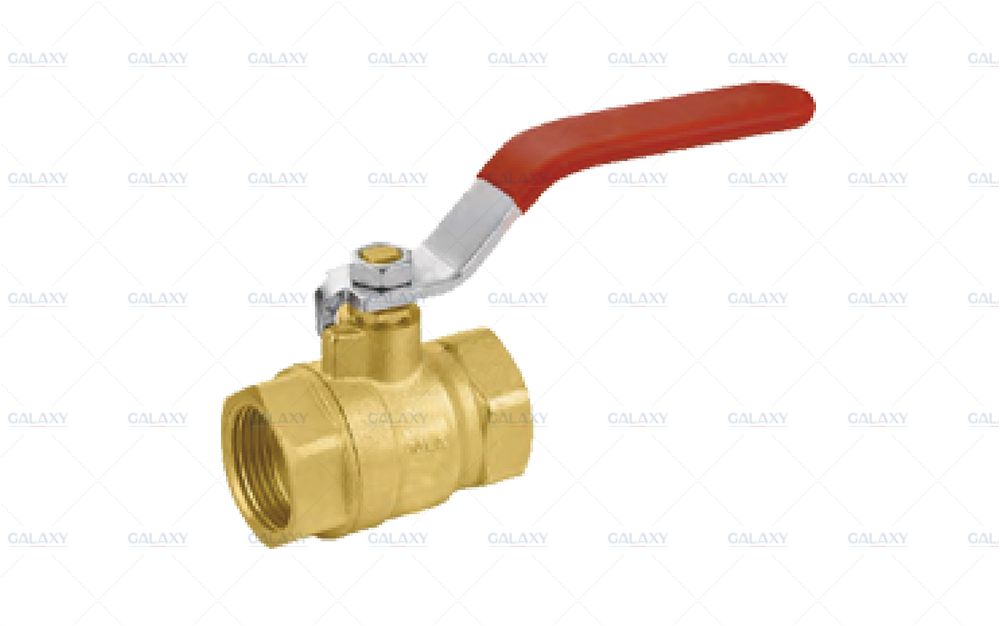

Threaded Brass Ball Valve
Fig. 1207
Size DN15~DN50
Working pressure PN16
Design standard GB/T 8464
Features
- Suitable for frequent operations, opening and closing quickly and easily.
- Small fluid resistance.
- Simple structure, small volume size, light weight and easy to maintain.
- Good sealing performance.
- Not restricted by the installation direction; the fluid direction can be bidirectional.

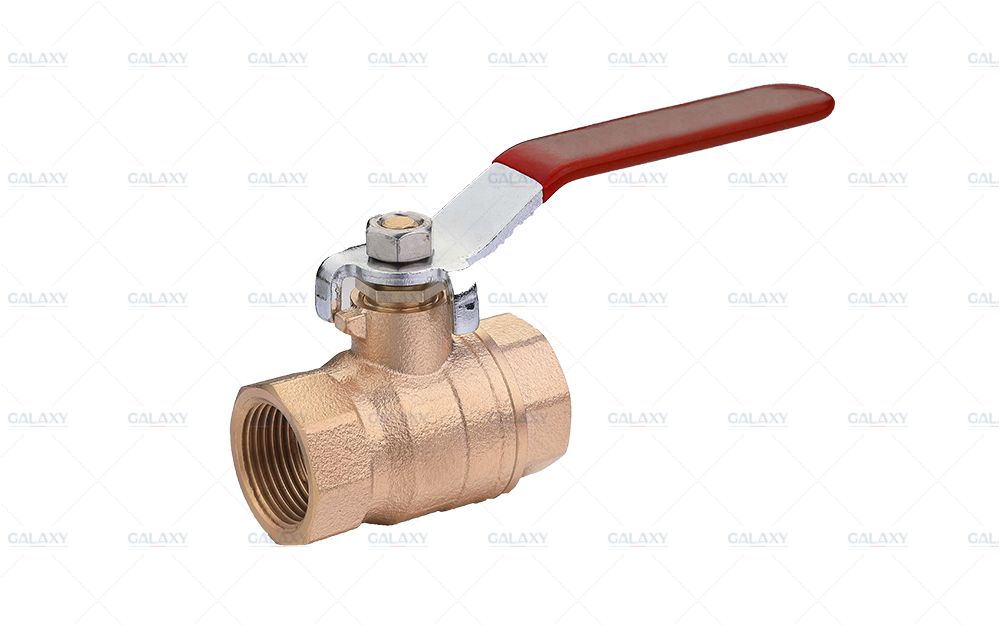

Threaded Bronze Ball Valve
Fig. 1251
Size DN15~DN50
Working pressure PN16
Design standard MSS SP-110
Features
- WRAS approved.
- Suitable for frequent operations, opening and closing quickly and easily.
- Small fluid resistance.
- Simple structure, small volume size, light weight and easy to maintain.
- Good sealing performance.
- Not restricted by the installation direction; the fluid direction can be bidirectional.

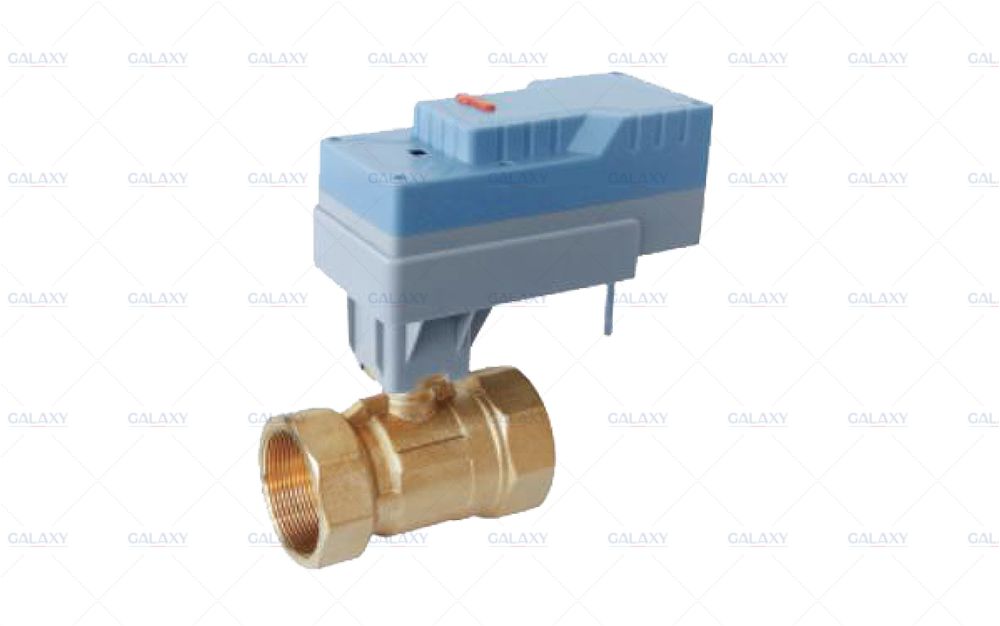

Electric Two-way Threaded Ball Valve
Fig. TABX-TD
Size DN20~DN50
Working pressure PN16
Thread standard ISO 228/1
Features
- The actuator is driven by a synchronous motor and has stable action.
- The built-in limit contact cuts off the power when the valve is fully open or fully closed.
- Forged brass valve body, suitable for air conditioning systems.
