FM UL Mechanical Joint Gate Valves
FM / UL gate valves with mechanical and flange-mechanical ends, available in NRS and OS&Y versions.
FM UL Mechanical Joint Gate Valves

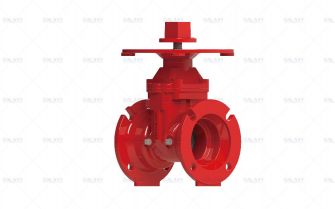

FM UL Mechanical NRS Resilient Seated Gate Valve
Fig. 345PJJ
Size DN80~DN300
Working pressure 200PSI / 250PSI / 365PSI
Valve Standard AWWA C153 / A21.11
Features
- FM Approved and UL Listed, cross validation available.
- Flat-bottom design: debris does not easily accumulate and the flow is unimpeded.
- Stem sealing ring reduces the friction resistance when operating the valve.
- Non-rising stem design requires less installation space and suits places with limited space.
Dimensions(mm/inch):
| SIZE | mm inch |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | mm inch |
178 7.00 |
191 7.50 |
203 8.00 |
229 9.00 |
254 10.00 |
267 10.50 |
292 11.50 |
330 13.00 |
356 14.00 |
| H | mm inch |
418 16.46 |
418 16.46 |
488 19.21 |
538 21.18 |
654 25.75 |
740 29.13 |
935 36.81 |
1126 44.33 |
1316 51.81 |
| D | mm inch |
183 7.20 |
183 7.20 |
253 9.96 |
253 9.96 |
306 12.05 |
306 12.05 |
355 13.98 |
445 17.52 |
445 17.52 |

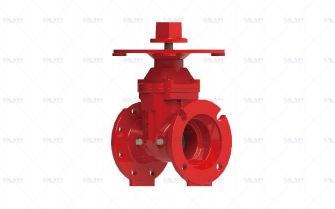

FM UL Flanged-Mechanical NRS Resilient Seated Gate Valve
Fig. 345PFJ
Size DN80~DN300
Working pressure 200PSI / 250PSI / 365PSI
Valve Standard Flange End: ANSI B16.1 Class 125 / B16.42 Class 150, BS EN1092-2 PN16
Mechanical End: AWWA C153 / A21.11
Features
- FM Approved and UL Listed, cross validation available.
- Flat-bottom design: debris does not easily accumulate and the flow is unimpeded.
- Stem sealing ring reduces the friction resistance when operating the valve.
- Non-rising stem design requires less installation space and suits places with limited space.
Dimensions(mm/inch):
| SIZE | mm inch |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | mm inch |
178 7.00 |
191 7.50 |
203 8.00 |
229 9.00 |
254 10.00 |
267 10.50 |
292 11.50 |
330 13.00 |
356 14.00 |
| H | mm inch |
418 16.46 |
418 16.46 |
488 19.21 |
538 21.18 |
654 25.75 |
740 29.13 |
935 36.81 |
1126 44.33 |
1316 51.81 |
| D | mm inch |
183 7.20 |
183 7.20 |
253 9.96 |
253 9.96 |
306 12.05 |
306 12.05 |
355 13.98 |
445 17.52 |
445 17.52 |

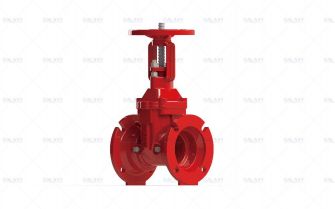

FM UL Mechanical OS&Y Resilient Gate Valve
Fig. 341JJ
Size DN80~DN300
Working pressure 200PSI / 250PSI / 365PSI
Valve Standard AWWA C153 / A21.11
Features
- FM Approved and UL Listed, cross validation available.
- Flat-bottom design: debris does not easily accumulate and the flow is unimpeded.
- Stem sealing ring reduces the friction resistance when operating the valve.
- OS&Y design makes lubrication easy and the opening degree is clearly visible.
Dimensions(mm/inch):
| SIZE | mm inch |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | mm inch |
178 7.00 |
191 7.50 |
203 8.00 |
229 9.00 |
254 10.00 |
267 10.50 |
292 11.50 |
330 13.00 |
356 14.00 |
| H | mm inch |
418 16.46 |
418 16.46 |
488 19.21 |
538 21.18 |
654 25.75 |
740 29.13 |
935 36.81 |
1126 44.33 |
1316 51.81 |
| D | mm inch |
183 7.20 |
183 7.20 |
253 9.96 |
253 9.96 |
306 12.05 |
306 12.05 |
355 13.98 |
445 17.52 |
445 17.52 |

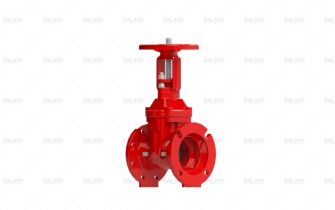

FM UL Flanged-Mechanical OS&Y Resilient Gate Valve
Fig. 341FJ
Size DN80~DN300
Working pressure 200PSI / 250PSI / 365PSI
Valve Standard Flange End: ANSI B16.1 Class 125 / B16.42 Class 150, BS EN1092-2 PN16
Mechanical End: AWWA C153 / A21.11
Features
- FM Approved and UL Listed, cross validation available.
- Flat-bottom design: debris does not easily accumulate and the flow is unimpeded.
- Stem sealing ring reduces the friction resistance when operating the valve.
- OS&Y design makes lubrication easy and the opening degree is clearly visible.
Dimensions(mm/inch):
| SIZE | mm inch |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | mm inch |
178 7.00 |
191 7.50 |
203 8.00 |
229 9.00 |
254 10.00 |
267 10.50 |
292 11.50 |
330 13.00 |
356 14.00 |
| H | mm inch |
418 16.46 |
418 16.46 |
488 19.21 |
538 21.18 |
654 25.75 |
740 29.13 |
935 36.81 |
1126 44.33 |
1316 51.81 |
| D | mm inch |
183 7.20 |
183 7.20 |
253 9.96 |
253 9.96 |
306 12.05 |
306 12.05 |
355 13.98 |
445 17.52 |
445 17.52 |
