Y type Strainer

Strainers

Here you can find a list of all our Strainers

Basket Type Strainer
Y type Strainer
Y-Type Strainer SPEC

Click to enlarge

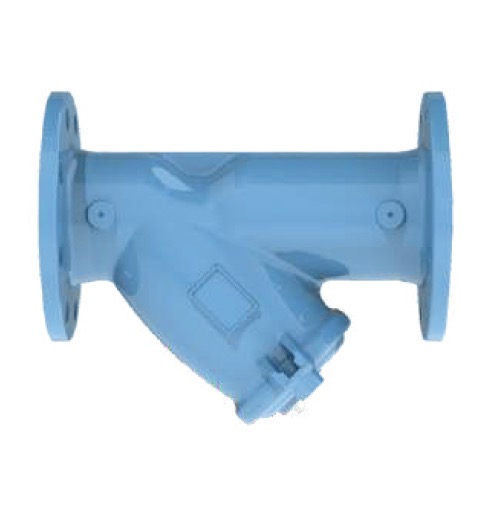

Y-Type Strainer

Fig. 7101

Working pressure:
16bar/25bar

Note:
CI Body For PN16&Class 125
DI Body For PN25&Class 250

Material Specification:

Part Material ASTM Spec
Body Cast Iron
Ductile Iron
A126 Class B
A536 65-45-12
Cover Cast Iron
Ductile Iron
A126 Class B
A536 65-45-12
Screen Stainless Steel AISI 304
Blow-Off Plug Carbon Steel
Gasket Graphite / Teflon Commercial

Standard Screen:

Size〔mm 〕 Hole Dia. 〔mm 〕 Mesh
40~150 1.5 104
200~350 2.5 26
400~650 3.5 22

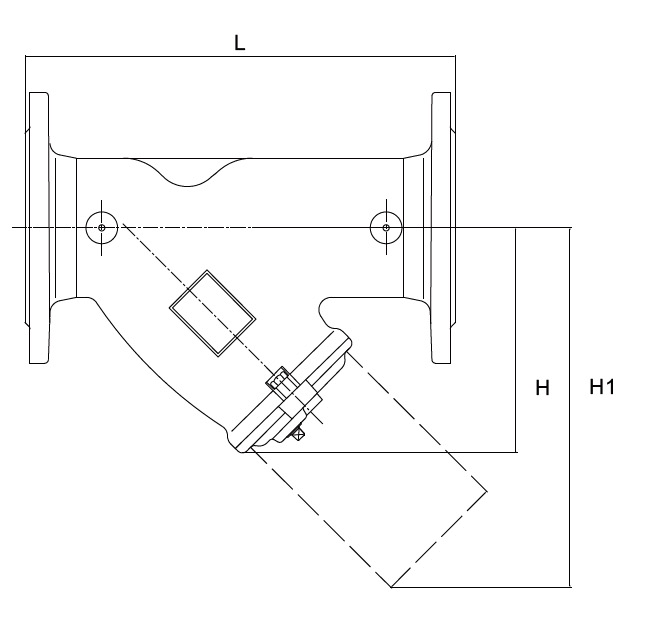

Dimensions(mm/inch):

DN mm
inch
40
1-1/2
50
2
65
2-1/2
80
3
100
4
125
5
150
6
200
8
250
10
300
12
350
14
400
16
450
18
500
20
600
24
650
26
L 200 230 290 310 350 400 480 600 730 850 980 1100 1200 1250 1450 1550
H 200 230 290 310 350 400 480 600 730 850 980 1100 1200 1250 1450 1550
Basket Type Strainer
Basket Type Strainer

Click to enlarge

Basket Type Strainer

Fig. 7105

Working pressure:
16bar/25bar

Note:
CI Body For PN16&Class 125
DI Body For PN25&Class 250

Material Specification:

Working pressure 16bar
Testing Pressure Shell:24bar
Seal:17.6bar
Working Temperature -10°C to 120°C
Suitable Media Water,Oil&Gas

Standard Screen:

Size〔mm 〕 Hole Dia. 〔mm 〕 Mesh
50~80 1.5 104
100~400 3.0 40
450~600 5.0 12

Dimensions(mm/inch):

DN mm
inch
50
2
65
2-1/2
80
3
100
4
125
5
150
6
200
8
250
10
300
12
350
14
400
16
450
18
500
20
600
24
L 207 210 251 292 334 378 472 511 680 769 842 842 842 1054
H1 135 155 190 205 219 235 295 335 405 585 590 590 600 1175
H2 90 95 105 117 146 165 215 325 355 345 390 420 510 515
