Resilient Seated NRS Type-Flanged Ends

Gate Valve

Here you can find a list of all our Gate Valve

buttery valves products
Resilient Seated NRS Type-Flanged Ends Gate Valve
Resilient Seated NRS Type-Flanged Ends Gate Valve

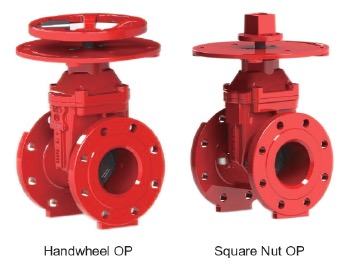

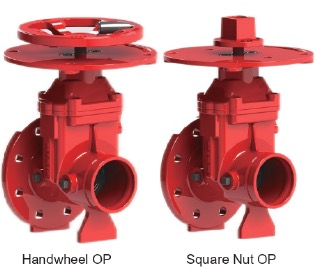

Resilient Seated NRS Type-Flanged Ends

Click to enlarge

Resilient Seated NRS Type-Flanged Ends

Fig. 388FF-300; 388FF-250; 388FF-200

Valve Standard
Conforms to AWWA C515 / BS5163

Working pressure
DN50~DN600 200PSI
DN50~DN450 250PSI
DN50~DN300 300PSI

Flanged Ends
ANSI B16.1 Class125/150/250,
EN1092-2 PN10/PN16/PN25
BS10 Table D/Table E

Materials List:

Part NameMaterialSpecification
BodyDuctile IronA536 65-45-12
Wedge DiscDuctile IronEPDM Coated
Disc NutBronzeASTM B62
StemStainless SteelAISI 304/302
GasketEPDMCommercial
BonnetDuctile IronA536 65-45-12
Thrust CollarBronzeASTM B62
GlandDuctile IronA536 65-45-12
Wrench NutDuctile IronA536 65-45-12
Post PlateDuctile IronA536 65-45-12

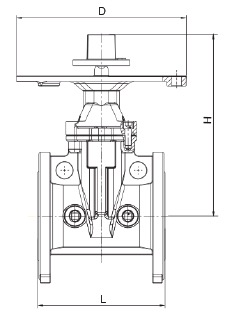

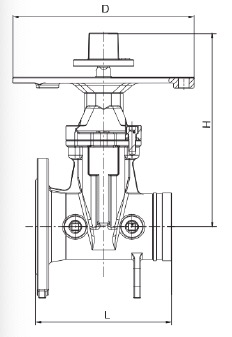

Dimensions(mm/inch):

SIZEmm
inch
50
2
65
80
3
100
4
125
5
150
6
200
8
250
10
300
12
Lmm
inch
178
7.00
191
7.50
203
8.00
229
9.00
254
10.00
267
10.50
292
11.50
330
13.00
356
14.00
Hmm
inch
418
16.46
418
16.46
488
19.21
538
21.18
654
25.75
740
29.13
935
36.81
1126
44.33
1316
51.81
Dmm
inch
183
7.20
183
7.20
253
9.96
253
9.96
306
12.05
306
12.05
355
13.98
445
17.52
445
17.52

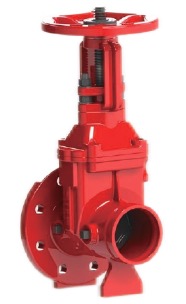

Resilient Seated OS&Y Type-Flanged Ends
Resilient Seated NRS Type-Flanged Ends Gate Valve
Resilient Seated OS&Y Type-Flanged Ends

Click to enlarge

Resilient Seated OS&Y Type-Flanged Ends

Fig. 399FF-300; 399FF-250; 399FF-200

Valve Standard
Conforms to AWWA C515 / BS5163

Working pressure
DN50~DN600 200PSI
DN50~DN450 250PSI
DN50~DN300 300PSI

Flanged Ends
ANSI B16.1 Class125/150/250,
EN1092-2 PN10/PN16/PN25
BS10 Table D/Table E

Materials List:

Part NameMaterialSpecification
BodyDuctile IronA536 65-45-12
WedgeDuctile IronEPDM Coated
Wedge NutStainless SteelAISI304
StemStainless SteelAISI 304/302
BonnetDuctile IronA536 65-45-12
GasketEPDMCommercial
PackingGraphiteNon-asbestos
Stem NutBronzeASTM B62
HandwheelDuctile IronA536 65-45-12

Dimensions(mm/inch):

SIZEmm
inch
50
2
65
80
3
100
4
125
5
150
6
200
8
250
10
300
12
Lmm
inch
178
7.00
191
7.50
203
8.00
229
9.00
254
10.00
267
10.50
292
11.50
330
13.00
356
14.00
Hmm
inch
295
11.61
295
11.61
323
12.72
342
13.46
408
16.06
440
17.32
537
21.14
640
25.20
723
28.46
Dmm
inch
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
Resilient Seated NRS Type-Groove-Groove Ends
Resilient Seated NRS Type-Flanged Ends Gate Valve

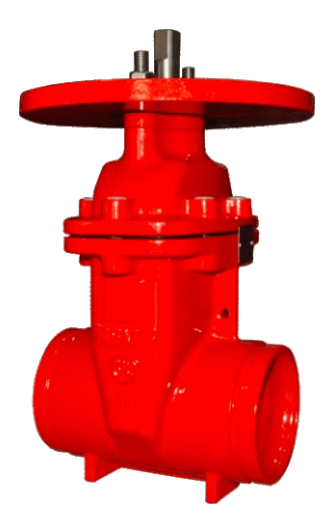

Resilient Seated NRS Type-Groove-Groove Ends SPEC

Click to enlarge

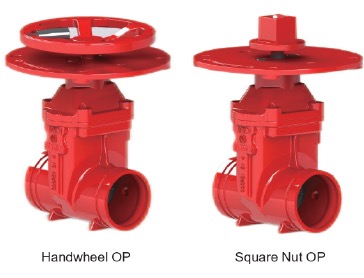

Resilient Seated NRS Type-Groove-Groove Ends

Fig. 388GG-300; 388GG-250; 388GG-2000

Valve Standard
Conforms to AWWA C515 / BS5163

Working pressure
200PSI / 250PSI / 300PSI

Flanged Ends
AWWA C 606
VDS2100/AS2638.2

Materials List:

Part NameMaterialSpecification
BodyDuctile IronA536 65-45-12
Wedge DiscDuctile IronEPDM Coated
Disc NutBronzeASTM B62
StemStainless SteelAISI 304/302
GasketEPDMCommercial
BonnetDuctile IronA536 65-45-12
Thrust CollarBronzeASTM B62
GlandDuctile IronA536 65-45-12
Wrench NutDuctile IronA536 65-45-12
Post PlateDuctile IronA536 65-45-12

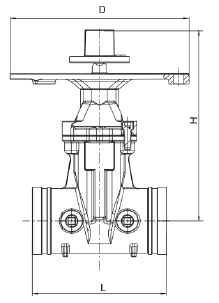

Dimensions(mm/inch):

SIZEmm
inch
50
2
65
80
3
100
4
125
5
150
6
200
8
250
10
300
12
Lmm
inch
178
7.00
191
7.50
203
8.00
229
9.00
254
10.00
267
10.50
292
11.50
330
13.00
356
14.00
Hmm
inch
295
11.61
295
11.61
323
12.72
342
13.46
408
16.06
440
17.32
537
21.14
640
25.20
723
28.46
Dmm
inch
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01
305
12.01

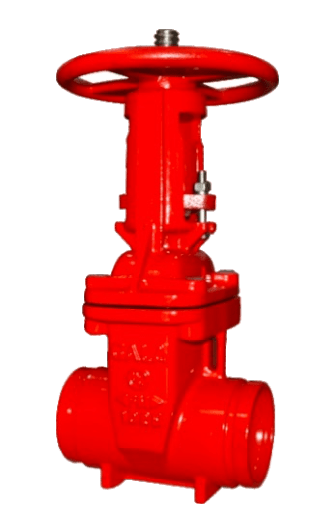

Resilient Seated OS&Y Type-Groove-Groove Ends
Resilient Seated NRS Type-Flanged Ends Gate Valve
Resilient Seated OS&Y Type-Groove-Groove Ends

Click to enlarge

Resilient Seated OS&Y Type-Groove-Groove Ends

Fig. 399GG-300; 399GG-250; 399GG-200

Valve Standard
Conforms to AWWA C515 / BS5163

Working pressure
200PSI / 250PSI / 300PSI

Flanged Ends
AWWA C 606
VDS2100/AS2638.2

Materials List:

Part NameMaterialSpecification
BodyDuctile IronA536 65-45-12
WedgeDuctile IronEPDM Coated
Wedge NutStainless SteelAISI304
StemStainless SteelAISI 304/302
BonnetDuctile IronA536 65-45-12
GasketEPDMCommercial
PackingGraphiteNon-asbestos
Stem NutBronzeASTM B62
HandwheelDuctile IronA536 65-45-12

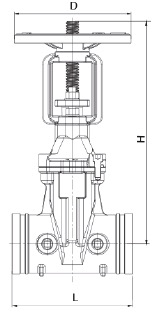

Dimensions(mm/inch):

SIZEmm
inch
50
2
65
80
3
100
4
125
5
150
6
200
8
250
10
300
12
Lmm
inch
178
7.00
191
7.50
203
8.00
229
9.00
254
10.00
267
10.50
292
11.50
330
13.00
356
14.00
Hmm
inch
418
16.46
418
16.46
488
19.21
538
21.18
654
25.75
740
29.13
935
36.81
1126
44.33
1316
51.81
Dmm
inch
183
7.20
183
7.20
253
9.96
253
9.96
306
12.05
306
12.05
355
13.98
445
17.52
445
17.52
