Double Flanged Butterfly Valves

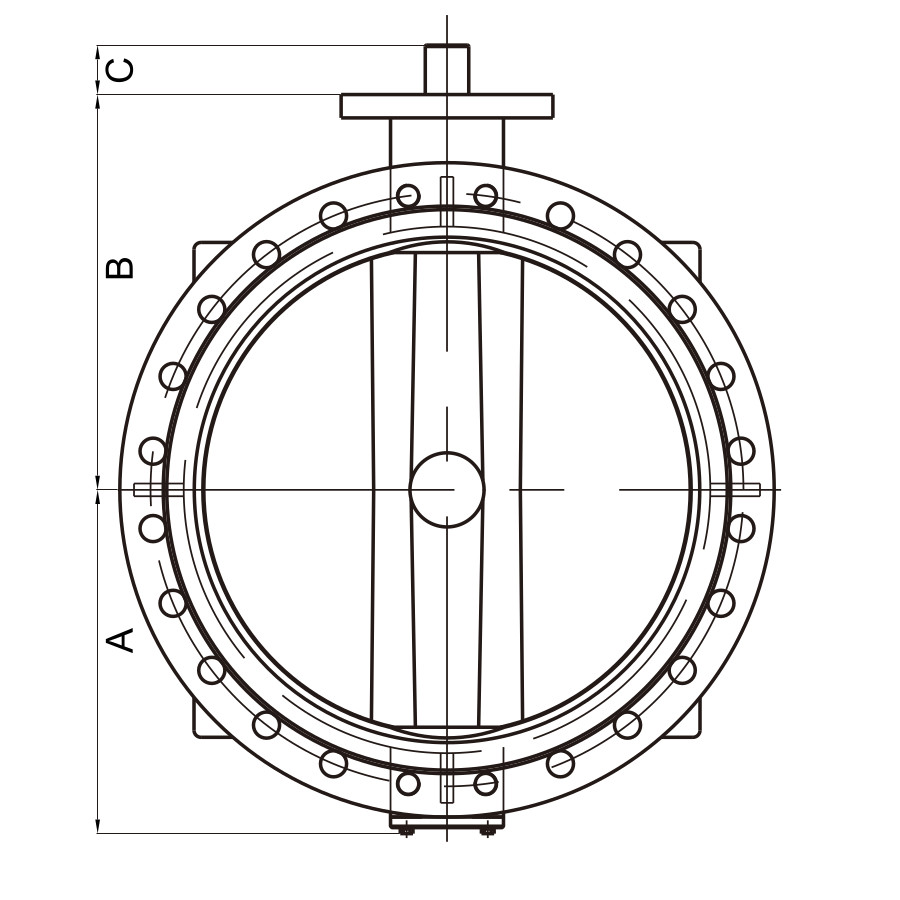

The structure length of the Double Flanged Butterfly Valve complies with international standard and can fit to any application worldwide Its body lining of rubber vulcanization ensures a stable driving torques and the ends of body rubber vulcanization adopt water line in order to fulfill various forms of the flange sealing requirements. Furthermore you have the possibility to choose lever, worm gear, pneumatic apparatus, electronic apparatus or combination driving operation according to working requirements. Double flanged butterfly valves have a simple structure: pins connect the stem and the plate of valve allowing a steadily positioning. Moreover bolt fittings are convenient during maintenance and replacing. The customers can independently choose the plate (electroplating, nylon plating coating, epoxy coating) according to requirements.
Pressure temperature ratings
| Working pressure | 16bar |
| Testing Pressure | Shell:24bar Seal:17.6bar |
| Working Temperature | -20 to 110 EPDM Seat 14 to 176 NBR Seat |
| Suitable Media | Water, Oil&Gas |
Double flanged butterfly valves materials list
| Part | Material | EN Spec. |
|---|---|---|
| Body | Ductile Iron | EN-JS 1050 |
| Disc | Ductile Iron Bronze Stainless Steel 304 Stainless steel 316 | EN-JS 1050 EN 1982 CC491K BS970 304 C 15 BS970 316 C 16 |
| Shaft | Stainless Steel 410 Stainless Steel 431 | BS970 410 S 210 BS970 431 S 29 |
| Seat Ring | EPDM / NBR | |
| O-Ring | EPDM / NBR | |
| Bushing | PTFE Bronze | EN 1982 CC491K |
