NRS Metal Seated Gate Valve
NRS Metal Seated Gate Valve
Resilient Seated NRS Type-Flanged Ends

Click to enlarge

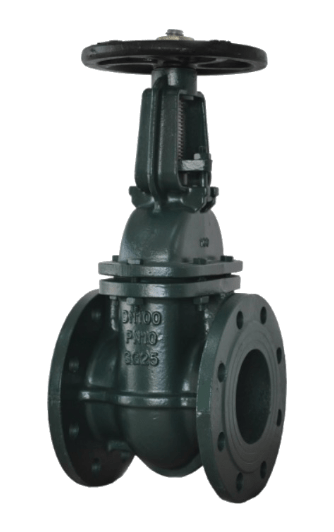

OS＆Y Metal Seated Gate Valve

Fig. 3213

Valve Standard
Comply with DIN 3352 (F4) / (F5)

Pressure Temperature Ratings:

Working pressure 10bar
Testing Pressure Shell:15bar
Seal:11bar
Working Temperature -10°C to 120°C

Material Specification:

Part Material EN Spec.
Body Cast Iron EN-JL1040
Bonnet Cast Iron EN-JL1040
Disc Cast Iron EN-JL1040
Seat Ring Bronze EN1982 CC491K
Stem Brass
Stainless Steel		 EN 12165 W603N
BS970 420S37
Packing Graphite Non-Asbestos
Hand Wheel Cast Iron EN-JL1040

Dimensions:

DN mm
inch		 40
1-1/2		 50
2		 65
2-1/2		 80
3		 100
4		 125
5		 150
6		 200
8		 250
10		 300
12
L 140 146 159 165 171 190 210 241 273 305
H 270 292 324 360 380 454 490 578 711 767
D 160 160 160 160 200 250 250 250 320 320
OS＆Y Metal Seated Gate Valve
NRS Metal Seated Gate Valve

Click to enlarge

NRS Metal Seated Gate Valve

Fig. 3126 (DIN F4); 3127 (DIN F5)

Valve Standard
Comply with BS 3464

Pressure Temperature Ratings:

Working pressure 10bar/16bar
Testing Pressure Shell:15bar/24bar
Seal:11bar/17.6bar
Working Temperature -10°C to 120°C

Material Specification:

Part Material EN Spec.
Body Cast Iron EN-JL1040
Bonnet Cast Iron EN-JL1040
Disc Cast Iron EN-JL1040
Seat Ring Brass EN 12165 W603N
Stem Stainless Steel 17440X20Cr13
BS970 420S37
Packing Graphite Non-Asbestos
Hand Wheel Cast Iron EN-JL1040

Dimensions:

DN mm
inch		 40
1-1/2		 50
2		 65
2-1/2		 80
3		 100
4		 125
5		 150
6		 200
8		 250
10		 300
12		 350
14		 400
16
L (F4)
(F5)		 140
240		 150
250		 170
270		 180
280		 190
300		 200
325		 210
350		 230
250
450		 270
500		 290
550		 310
600
H 271 291 321 360 378 451 489 573 708 764 970 940
D 160 160 160 160 200 250 250 250 320 320 400 400
